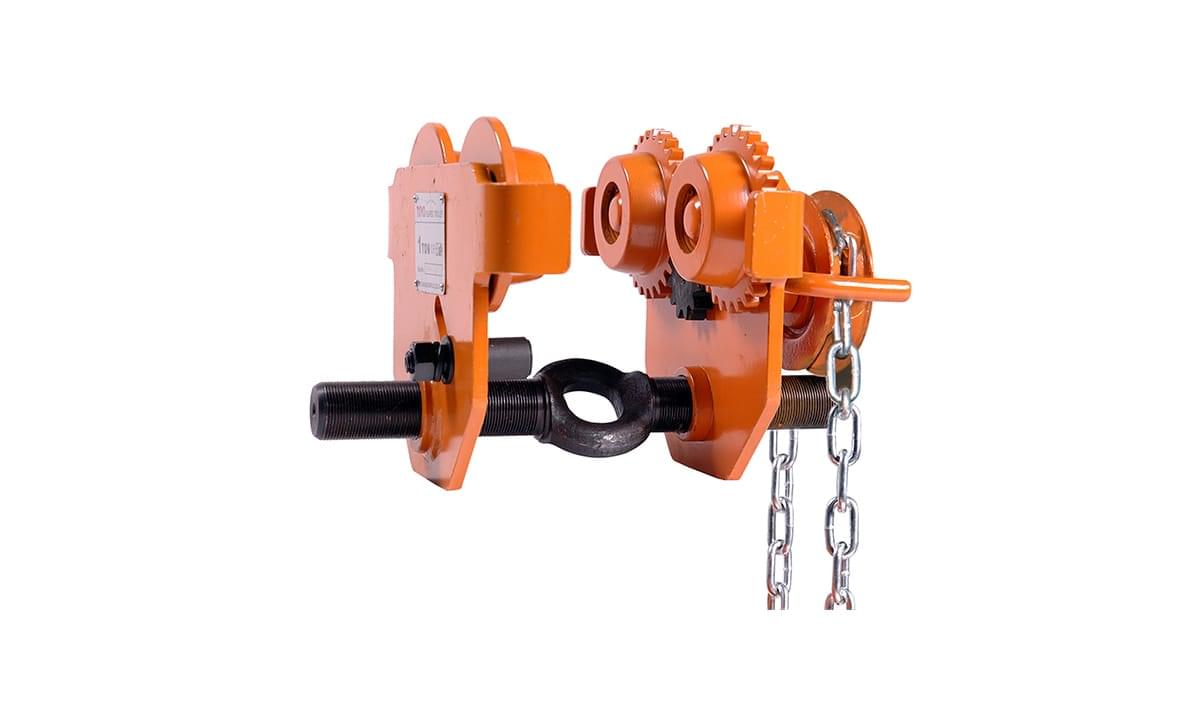

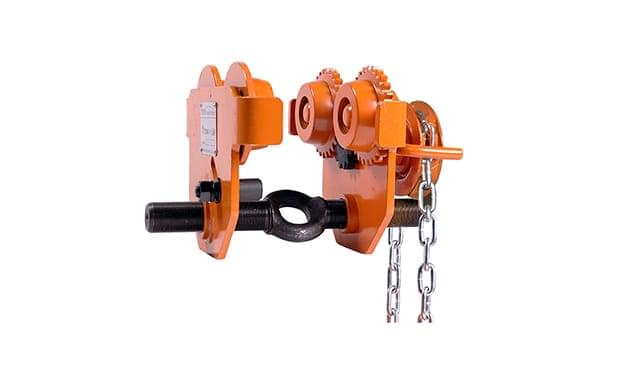

Toyo gear trolleys TGT model are made with high quality steel, the tensile strength of the TGT models are much higher than other products available in market. High strength steel body and gear case are built to be durable for rugged needs of construction, mechanical and maintenance rigging. TOYO manual Geared trolley is designed to be used with either manual hoist or electrical hoist. The gear trolley is used on a beam. Before installation, check that the supporting structure is capable of support the weight of the load, trolley and hoist. Hand chain allows back and forth horizontal movement of the gear trolley. The gear trolley will move in the opposite direction upon pulling the hand chain. Toyo gear trolley have managed to meet the requirements of our valued customers by offering a quality geared trolley. The products are proof load tested and supplied with a test certificate and user manual. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009
Key Information
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
| Technical Parameters | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | TGT-005 | TGT-010 | TGT-020 | TGT-030 | TGT-050 | ||||
| Capacity | t | 0.5 | 1 | 2 | 3 | 5 | |||
| Proof Load | t | 0.75 | 1.5 | 3 | 4.5 | 7.5 | |||
| I-Beam Width | mm | 50-220 | 58-220 | 66-220 | 74-220 | 90-220 | |||
| Dimension (mm) | A | 352.5 | 353.5 | 362 | 406.5 | 434.5 | |||
| B | 198 | 238 | 277 | 324 | 373 | ||||
| C | 158 | 183 | 208 | 249 | 296.5 | ||||
| D | 12.5 | 17 | 20 | 26 | 28 | ||||
| E | 40 | 31 | 31 | 31 | 40 | ||||
| F | ≈3 | ≈3 | ≈3 | ≈3 | ≈5 | ||||
| G | 25 | 29 | 36 | 46 | 52 | ||||
| Net Weight | Kg | 8.5 | 12.5 | 17 | 28 | 45 | |||

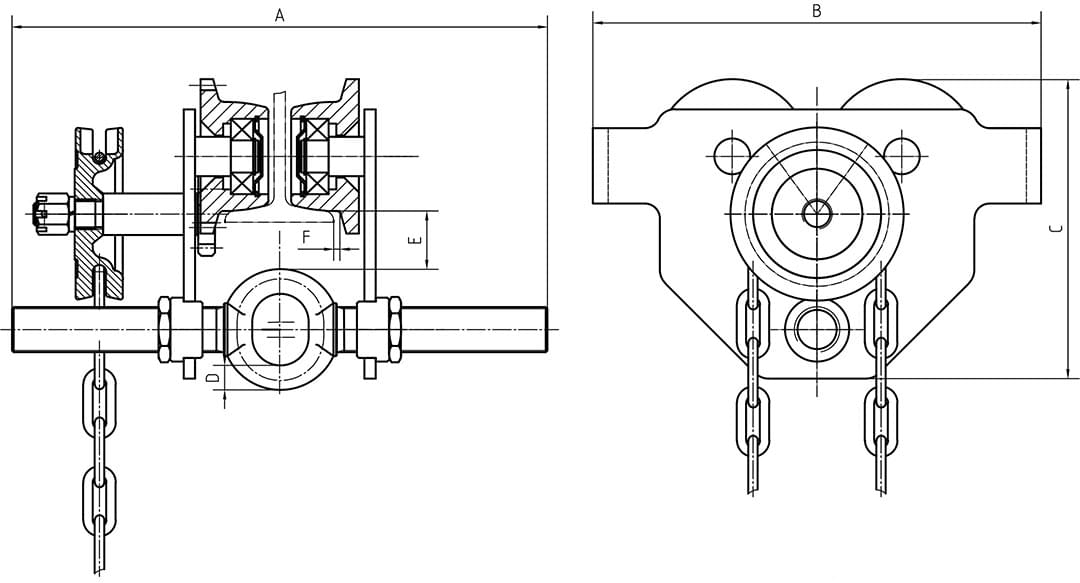

Technical Drawing : TGT - (005 -050)
| Technical Parameters | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | TGT-100* | TGT-200* | TGT-300* | ||||||
| Capacity | t | 10 | 20 | 30 | |||||
| Proof Load | t | 12.5 | 25 | 37.5 | |||||
| I-Beam Width | mm | 125-203 | 136-203 | 144-250 | |||||
| Dimension (mm) | A | 487.5 | 523 | 570 | |||||
| B | 455 | 642 | 642 | ||||||
| C | 490 | 622 | 622 | ||||||
| D | 82 | 110 | 110 | ||||||
| E | 36.5 | 54 | 50 | ||||||
| F | ≈5 | ≈5 | ≈5 | ||||||
| G | 1.3 | 4.7 | 4.7 | ||||||
| Net Weight | Kg | 93 | 247.5 | 254 | |||||

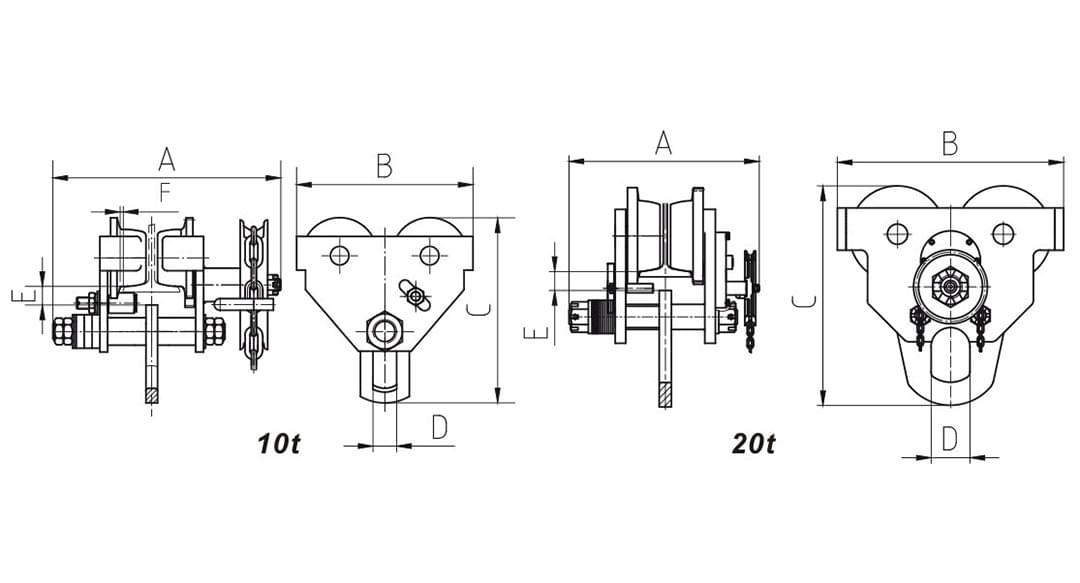

Technical Drawing : TGT - (100 - 300)
