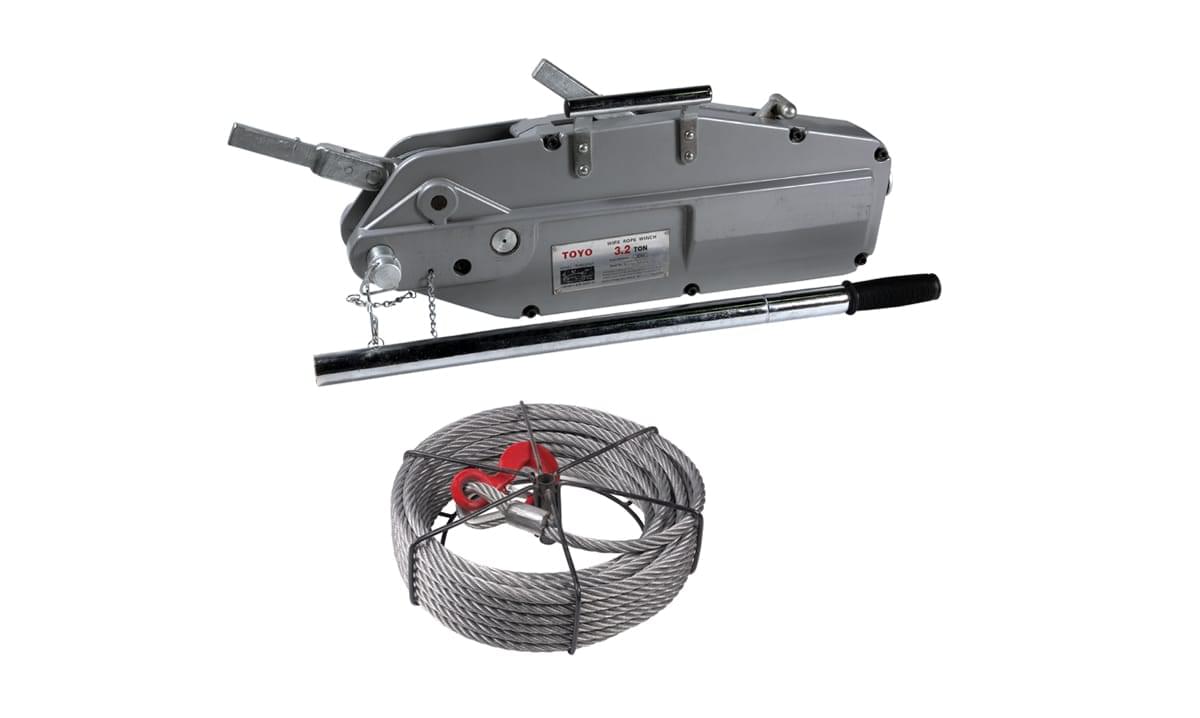

TOYO manual wire rope winch are one of our bestselling winch range designed for maximum flexibility and efficiency. The wire rope winch is light weight, wide range of applications and easy maintenance. Its made of forged Aluminum body making the product easy to handle. It is supplied with extendable handle to exercise maximum pulling force during operation. Tirfor / Winch are widely used to pull, lower and position heavy loads over long distances depending on the length of the rope. Winch are suitable for use in many configurations and are the ideal solution for use in professional applications these are operated by a single lever option. The products are proof load tested and supplied with a test certificate and user manual.
Product features
The manual hand pulling wire rope winch is used for pulling, positioning and lifting loads at a distance depending on the length of wire rope. It is good for light weight and robust work and is extremely easy to install. It adheres to the safety procedures of EC Council Directives.
Key Information
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
| Technical Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| WIRE ROPE WINCH (MODEL: TWP) Aluminium Body | ||||||||
| Model | TWP008 | TWP016 | TWP032 | TWP054 | ||||
| Rated Lifting Capacity | t | 0.8 | 1.6 | 3.2 | 5.4 | |||
| Rated Pulling Capacity | t | 1.2 | 2.4 | 4.8 | 8.1 | |||
| Rated Forward Handpower | n | 343 | 400 | 441 | 745 | |||
| Rated Forward Travel | mm | ≥52 | ≥55 | ≥28 | ≥0 | |||
| Rope Diameter | mm | 8.3 | 11 | 16 | 20 | |||
| Standard length of wire rope | m | 20 | 20 | 20 | 20 | |||
| Max. Travelling Load | kg | 1200 | 2400 | 4800 | 8000 | |||
| Net weight without cable | kg | 6.7 | 12.3 | 22.2 | 56.5 | |||
| Max Overall Size (mm) | A | 44 | 56 | 70 | 90 | |||
| B | 60 | 68 | 98 | 160 | ||||
| C | 101 | 120 | 150 | 200 | ||||
| D | 420 | 545 | 645 | 935 | ||||
| E | 430 | 556 | 666 | 940 | ||||
| F | 172 | 200 | 227 | 300 | ||||
| G | 240 | 270 | 320 | 410 | ||||
| L1 (cm) | 80 | 80 | 80 | 88 | ||||
| L2 (cm) | 120 | 120 | 135 | |||||

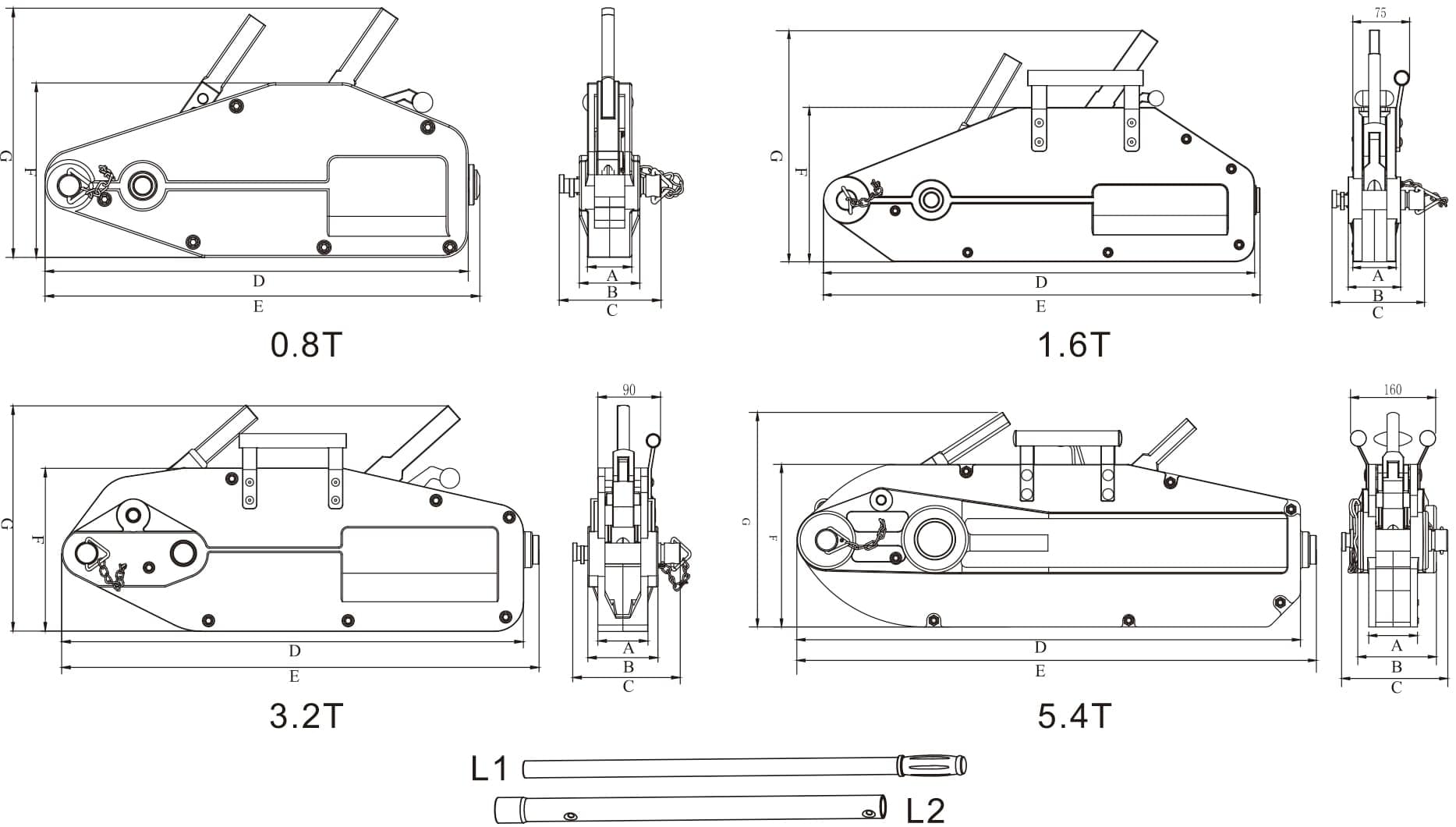

Technical Drawing
